Advantage:

1.High sensitivity and clarity:
The new car HiFi coaxial speakers have high sensitivity, excellent sound resolution, complete detail portrayal, and provide clear high-quality audio output.

2.Powerful performance:
The speakers use high-density magnets to provide powerful sound effects, and use aerospace technology to provide full power and precise audio output control. Ensure that the music sound quality is optimal regardless of the volume.

3.Suitable for various music genres:
This speaker provides high-power output and is suitable for various music genres, including pop, classical, jazz, country and rock, providing excellent performance in various types of music.

4.Moisture-proof design:
The G series subwoofer speakers use PP rubber and injection-molded tires to effectively prevent moisture, reduce deformation, and improve durability.

5.Universal compatibility:
This car audio speaker is compatible with a wide range of car models and can be easily installed in any vehicle. Our car subwoofer stereo system provides users with a high-fidelity experience, allowing them to enjoy their favorite music in the best sound quality whether they are on the road or at home.

Specification:

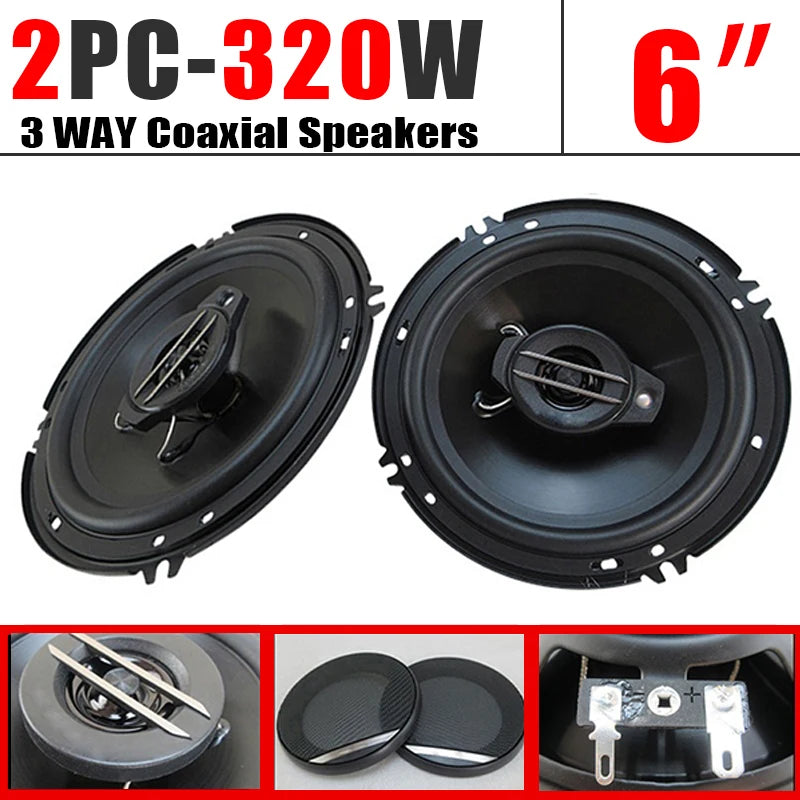

Speaker type: Coaxial Speaker (Full frequency range)
Number of sound channels: 3 Ways
Material: Metal+Magnet+Plastic
Applicable models: Universal Car, Truck, Bus, etc
Voltage: 12V~24V
Max. Music Power: 320W
Nominal Power: 32W
Woofer: 160mm(6")
Midrange: Φ 40mm
Tweeter: Φ 11mm Dome
Impedance: 4 Ohms
Sensitivity: 92 Db(±1.5Db)
Frequency Response: 30 Hz To 36 Khz (-20Db)
Drum: PP injection molding
Diaphragm: Surround PP rubber

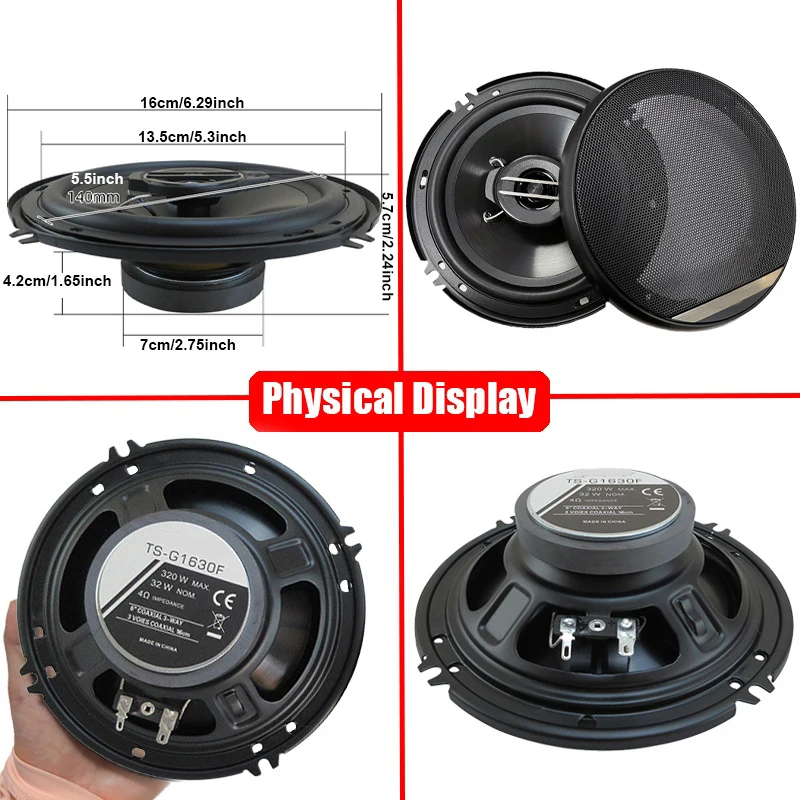

Product size: 6 inches

Package：
2X 6" Speakers
2X 6" Speaker covers
2X Speaker cables
1X Screw kit

Installation Instructions

To protect the vehicle, cover it with a dust cloth.

Pry the door, unscrew the screws inside and around the door panel, and force outward from the bottom of the door panel to remove the door.

Remove the original car horn first fix the gasket on the original car horn.

1. To protect the vehicle, add a dust cloth to the vehicle
2. Remove the door panel (trim panel)
3. Remove the original car speaker
4. Fix the speaker bracket
5. Fix the speaker crossover
6. Connect the speaker terminals
7. Fix the speaker to the bracket
8. Connect the cross connection to the speaker wiring
9. Remove the original car speaker and replace the speaker
10. The reset and replacement of the door panel is completed

THE DETAILS SHOW THE QUALITY

TREBLE TOP
Let your voice flow smoothly
Soft and sweet
Raised tweeter
The sound is briaht and metallic

HIGH QUALITY RUBBER EDGE
High quality rubber edge
High temperature resistance
Can be used for a long timewithout deformation

ELASTIC WAVE
Power of bounce
Reduce the loss of distortion degree
Restore the real voice

NO SOLDERING WIRE TERMINALS
Solderless wire
Pure copper material terminals
Guaranteed signal transmission
Easy to operate

CAST IRON BASIN STAND
Cold steel forging technology
The horn pelvic frame is strong
Reduce resonance effect in use
The frosted process is durable

HIGH ENERGY MAGNET
The remanence is low
The recovery magnetic permeability is small
Coercive force is greater

HORN SCREEN COVER
With horn mesh cover
Better protection of the horn

Attention:

1. Before buying, please confirm installation size, ensure the length and height of machine panel is suitable for your car.

2.Before installation, please carefully check the car horn lines, if grounding, please reconnect the lines before linking our machine, otherwise it may burn the machine.

3.The actual power of the speaker itself is not very large, there will be murmurs and buzzing when the speaker is very loud.

4.There will be murmurs and buzzing when the reconfiguration process is not connected correctly.

5. If there is no power amplifier installed, the sound of the main unit is not good and the power is not good, there will be murmurs and buzzing when the speaker is loud.
